RMSTATOR

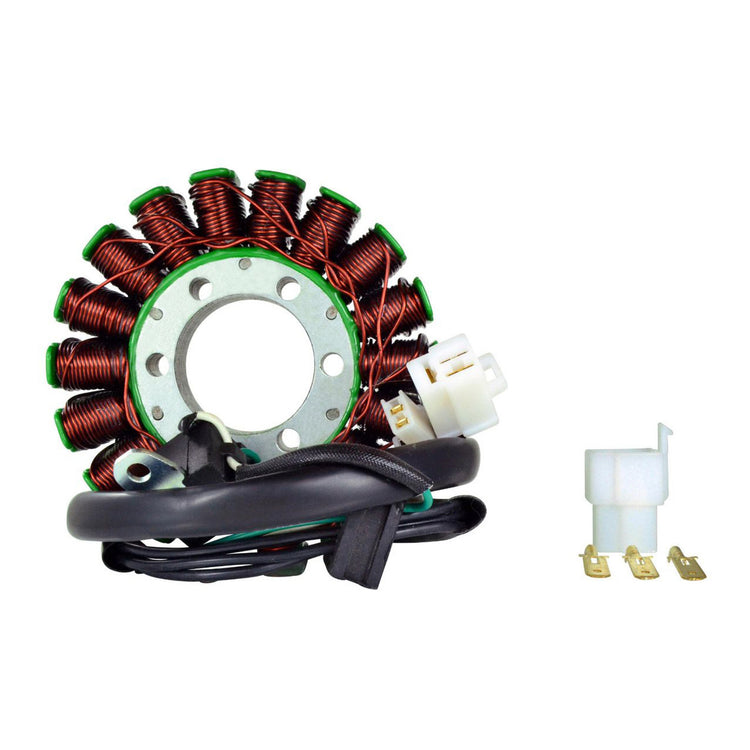

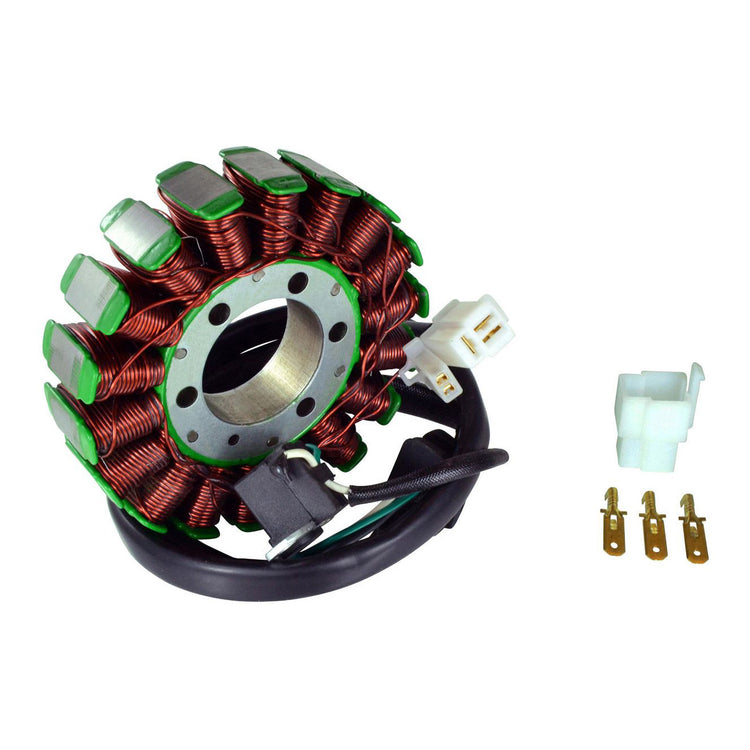

GENERATOR STATOR SUZ SV650 03-09 (RMS010-102166)

Regular price
$399.99
Regular price
Sale price
$399.99

Brand new aftermarket generator stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest-grade lamination materials
  • Highest-grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

Specifications:

Dimensions:

  • Interior diameter: 38 mm
  • Exterior diameter: 108 mm
  • Thickness: 19 mm
  • Length of wires stator to grommet: 120 mm
  • Length of wires grommet to plug: 550 mm
  • Length of pickup coil's wire to grommet: 59 mm

Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5

Wire-to-wire resistance:

  • Alternator: Black to Black = 0.5 ohms +-20%
  • Pickup: Green to White = 194 ohms +-20%
