RMSTATOR

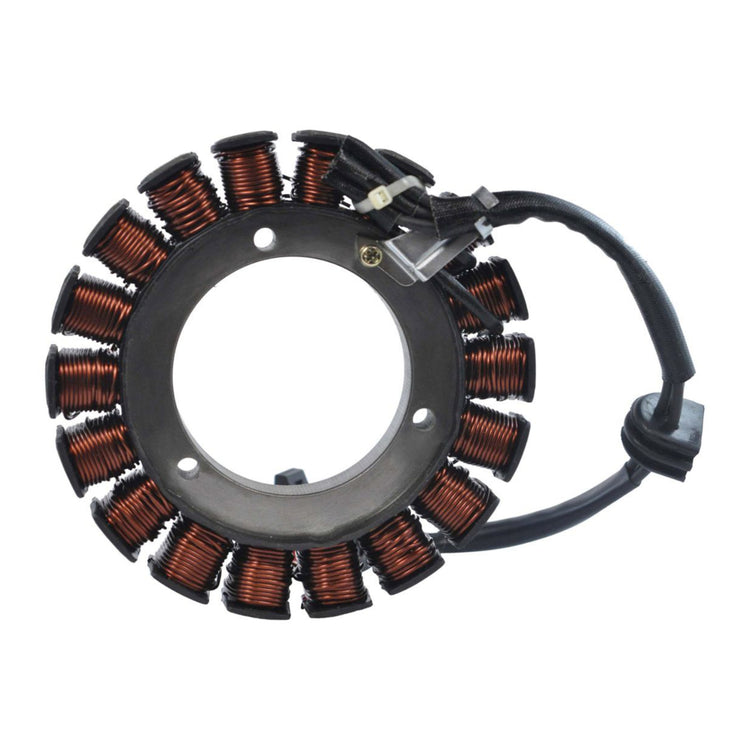

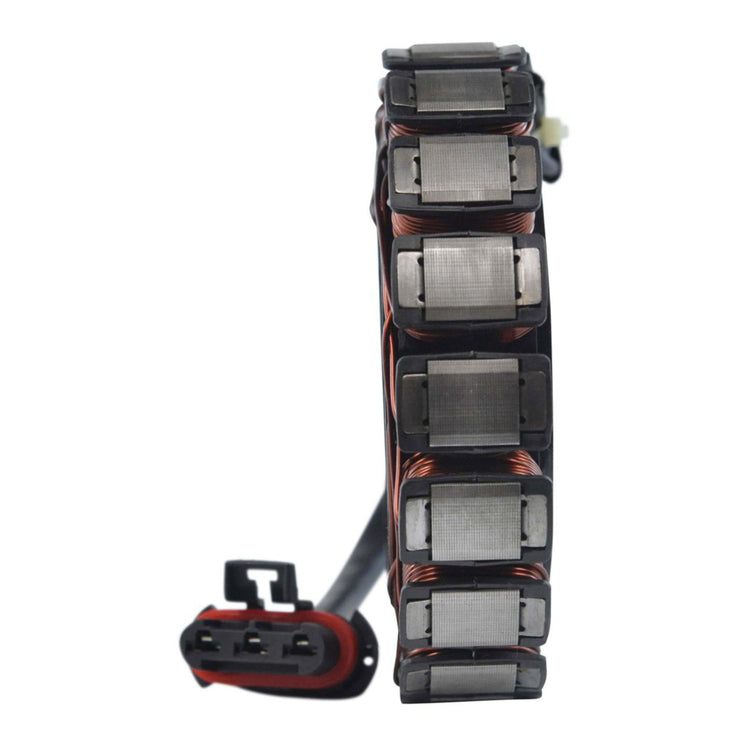

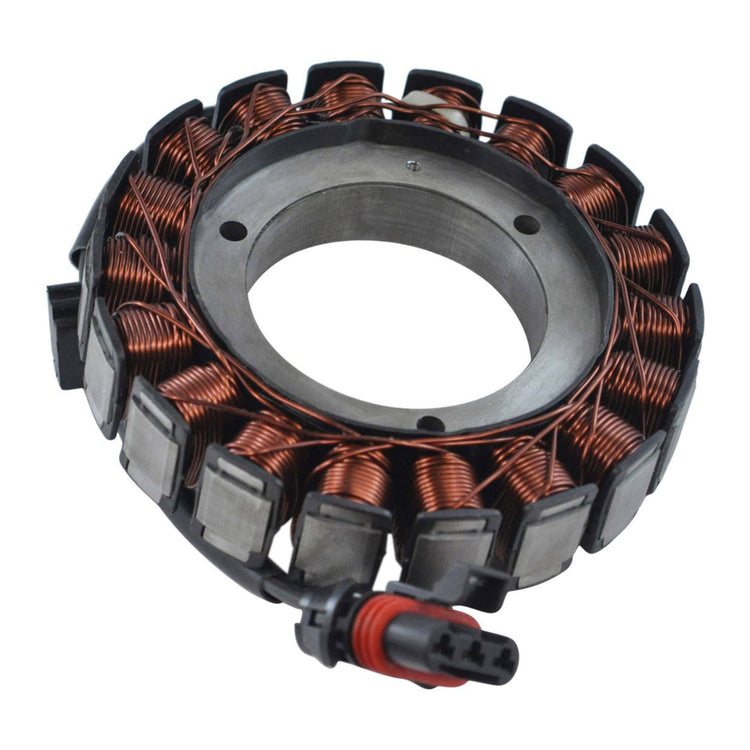

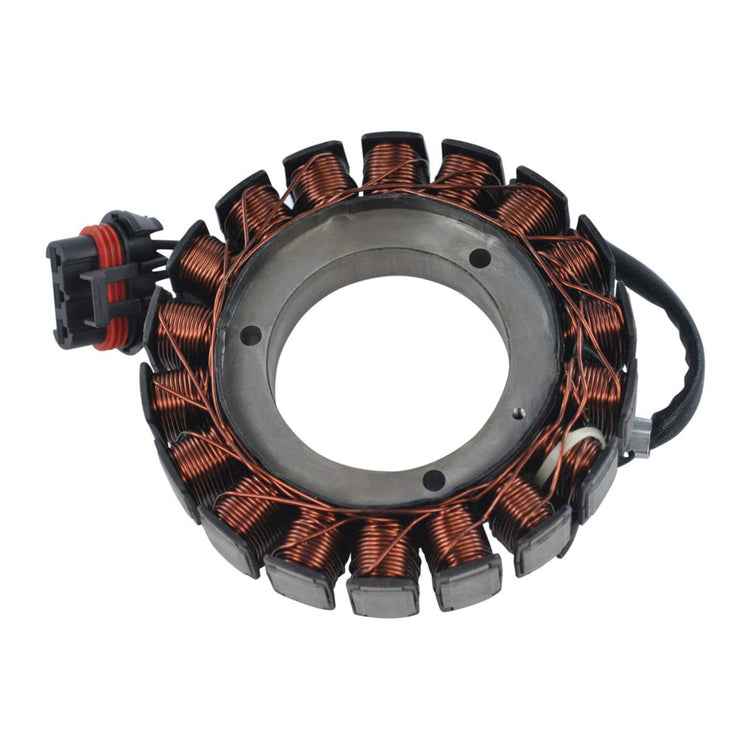

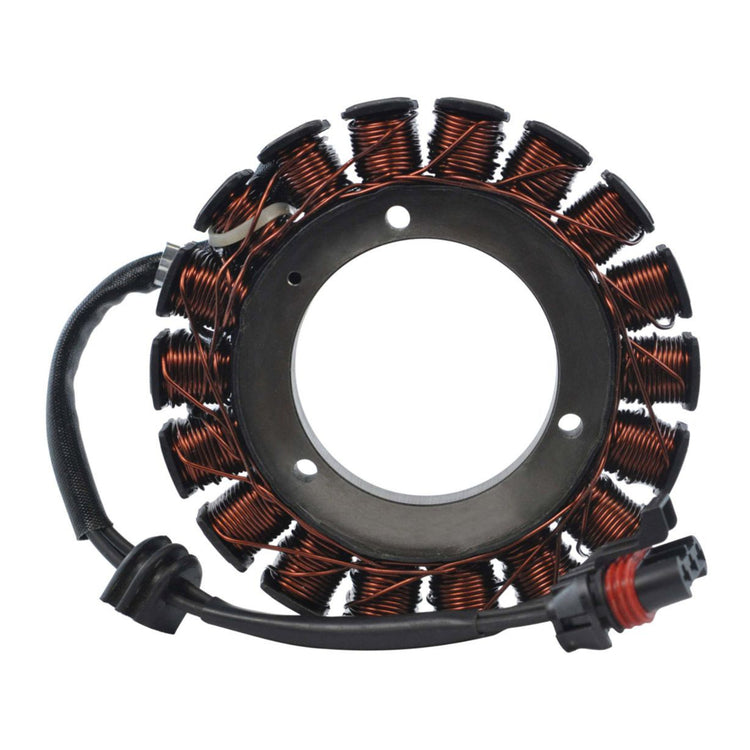

STATOR POLARIS SCRAM 850

$429.99
$429.99

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest-grade lamination materials

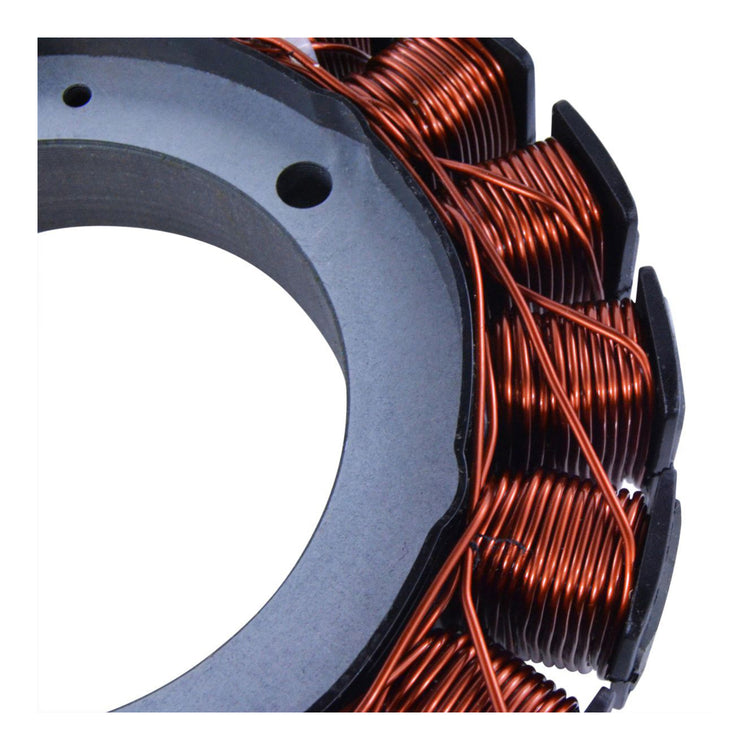

  • Highest-grade copper windings, resistant to 200 degrees Celsius.

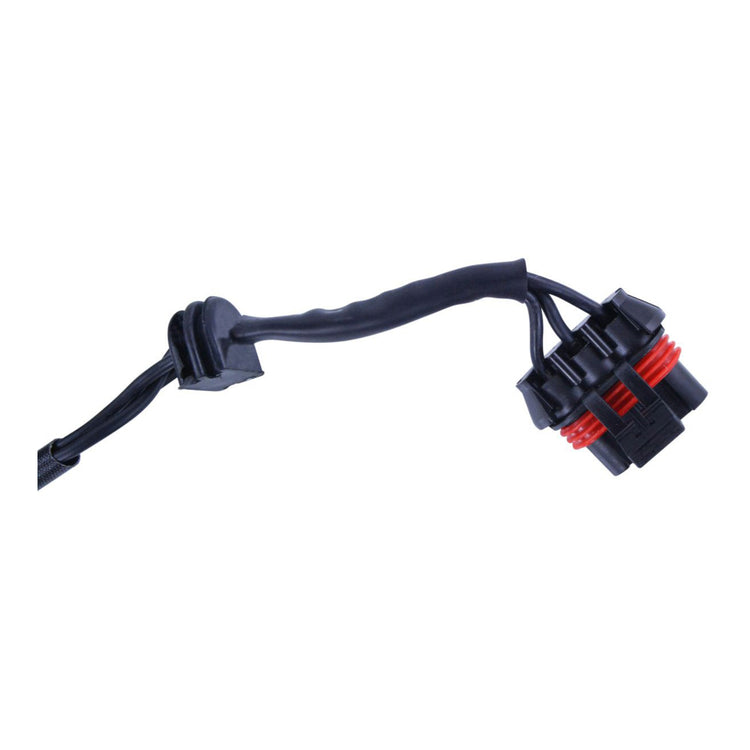

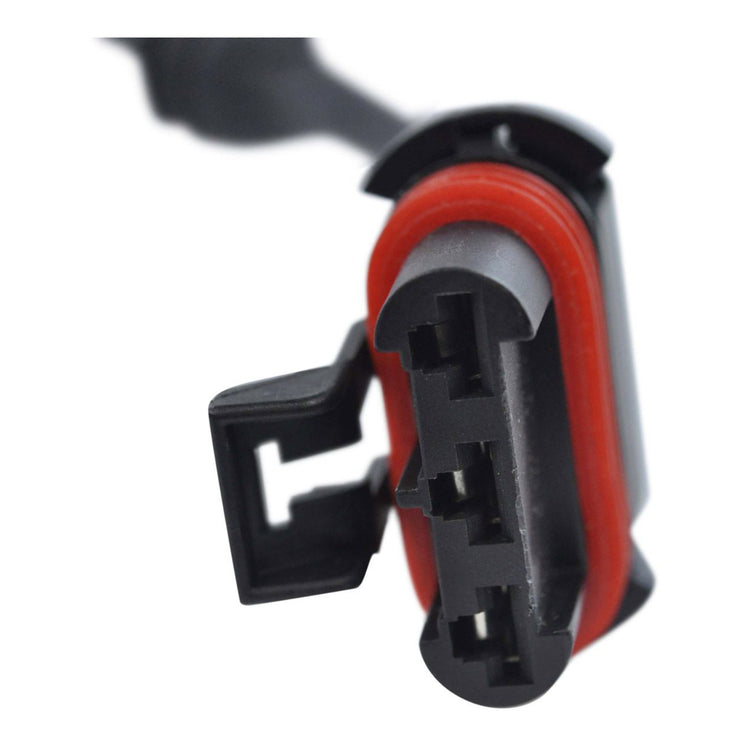

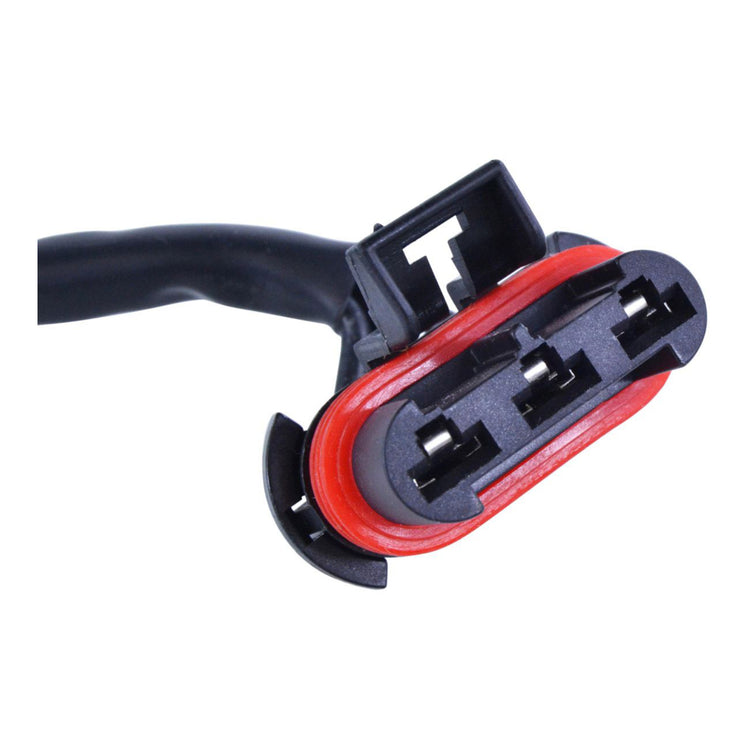

  • Connector included

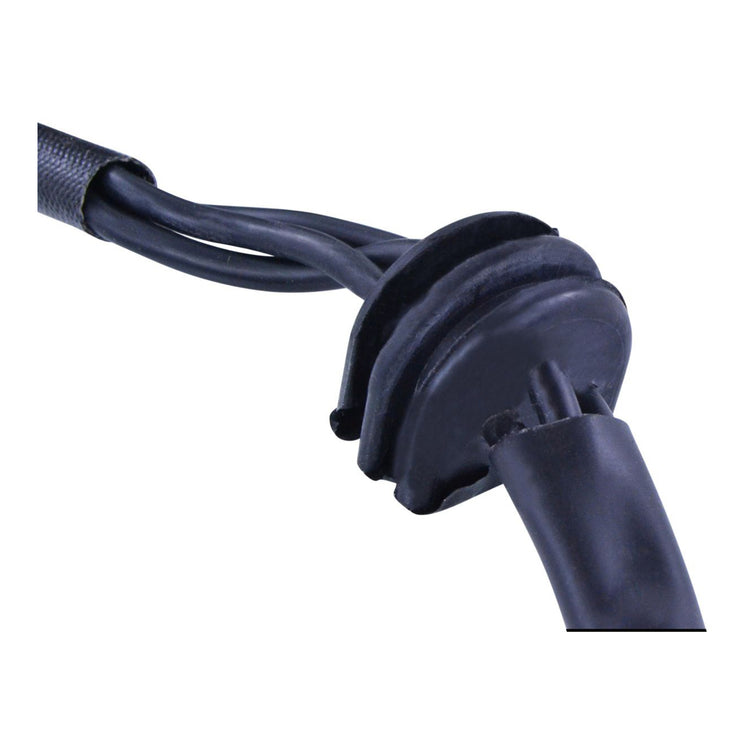

  • Rubber grommet included
  • All products shipped are tested

Specifications:

Dimensions:

  • Interior diameter: 69mm
  • Exterior diameter: 144mm
  • Thickness: 20mm
  • Length of wires stator to grommet: 100mm
  • Length of wires grommet to plug: 100mm

    • Other specifications:

    • Number of wires: 3
    • Number of plugs: 1
    • Number of pins: 3

    Wire-to-wire resistance:

    • Alternator: White between each White = 0.2ohms +/-20%
