RMSTATOR

STATOR KIT + CDI BOX + GASKET HON TRX450R 04 (RMS900-106198)

Regular price
$429.00
Regular price
Sale price
$429.00

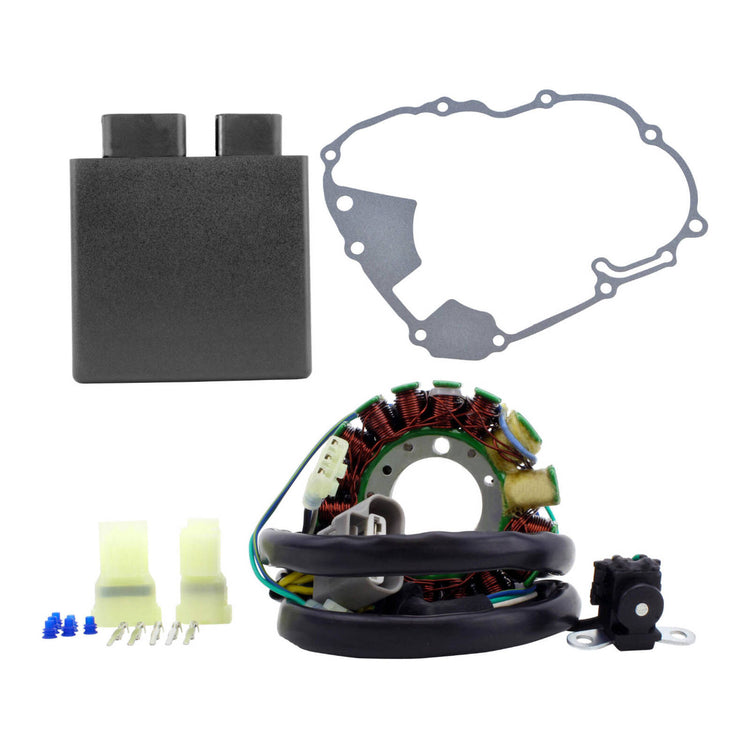

Brand new aftermarket Stator + CDI Box + Gasket Kit

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

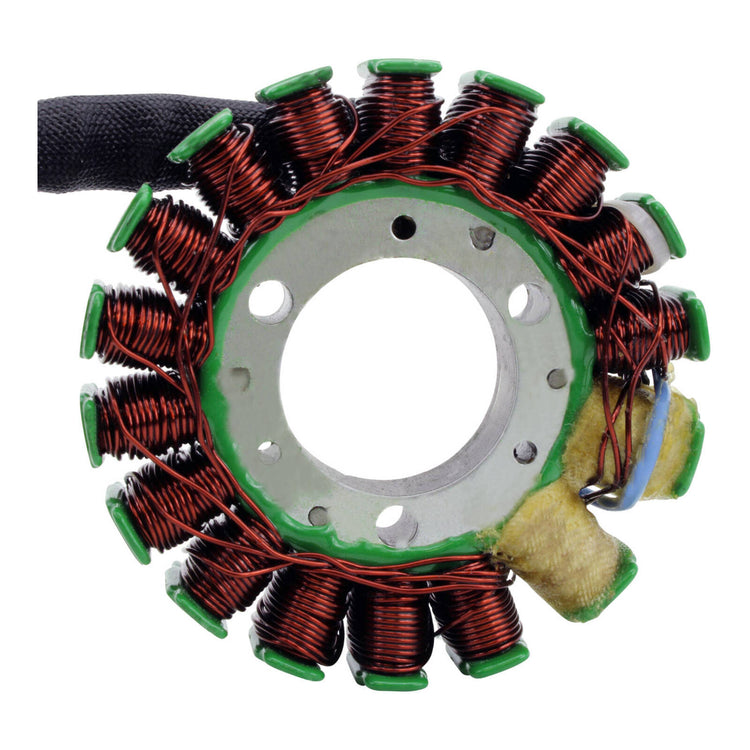

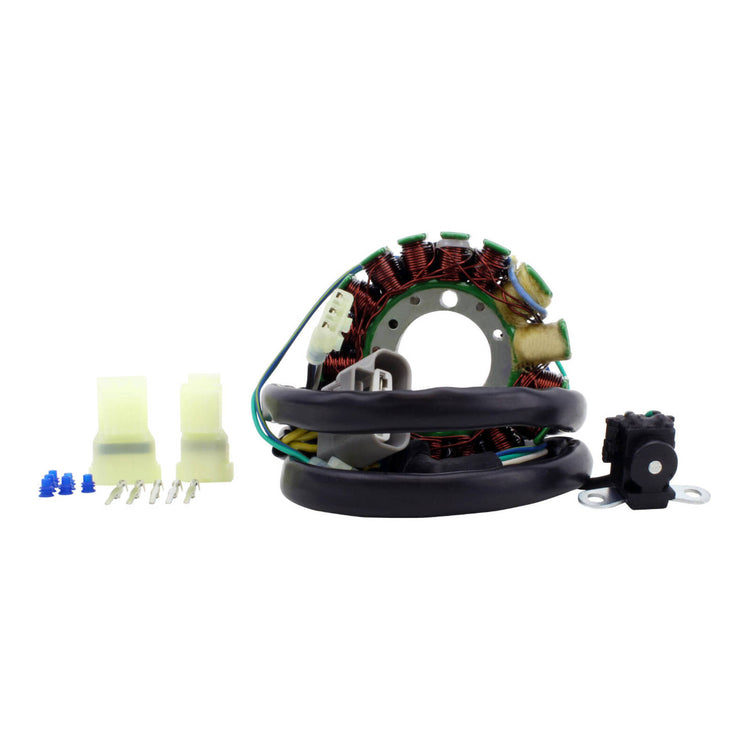

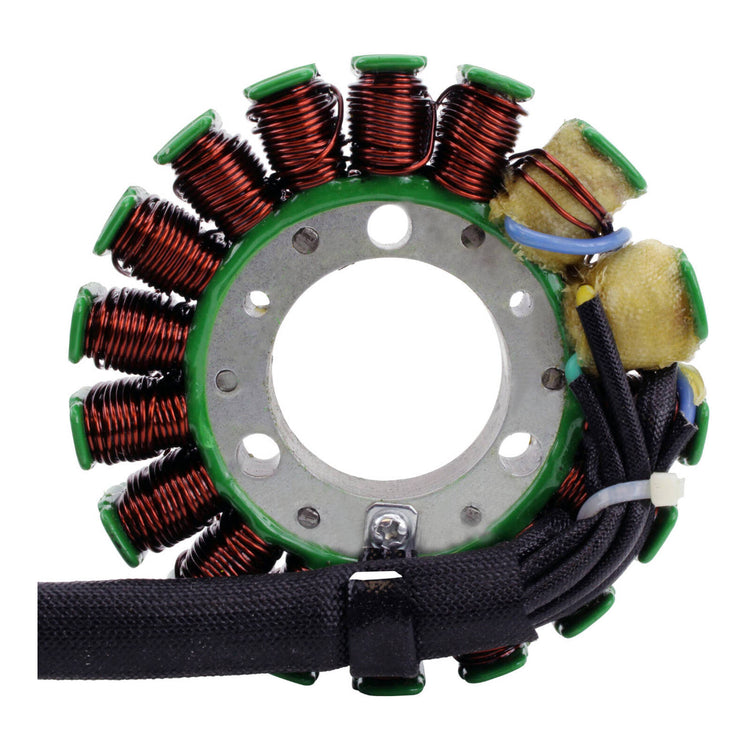

Brand new aftermarket Stator

  • Highest-grade lamination materials
  • Highest-grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included

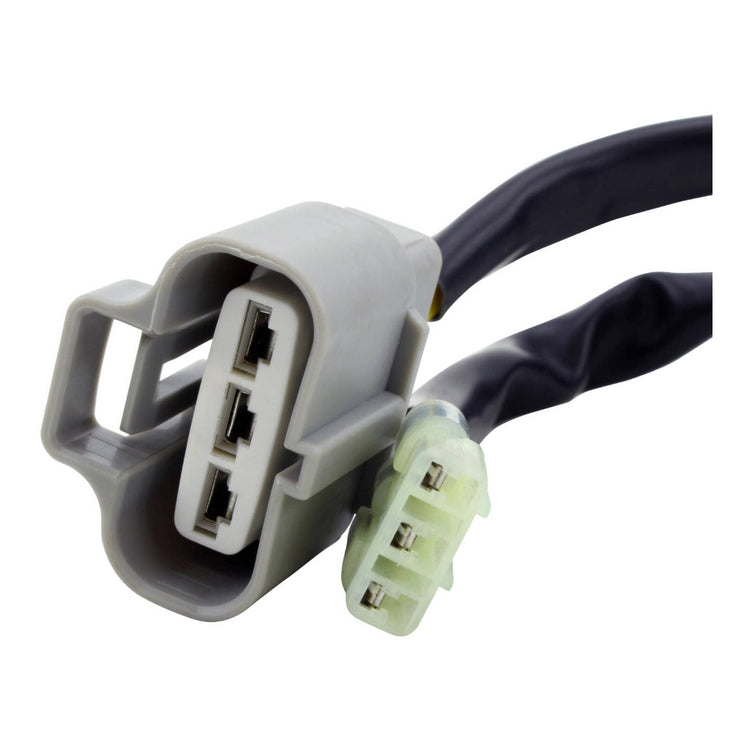

  • Connector included
  • Rubber grommet included

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

  • Our PeakRPM technology provides a more aggressive timing curve for increased throttle response
  • Ride at full throttle with our application-specific CDI box that raises the rev limiter by 1000 RPM
  • Enjoy fast & easy installation with our plug & play design and included dielectric connector grease
  • OEM-grade electronic components and printed circuit boards for long-term reliability and performance
  • 90% of ignition issues are caused by a faulty stator. Fully test ignition components before buying

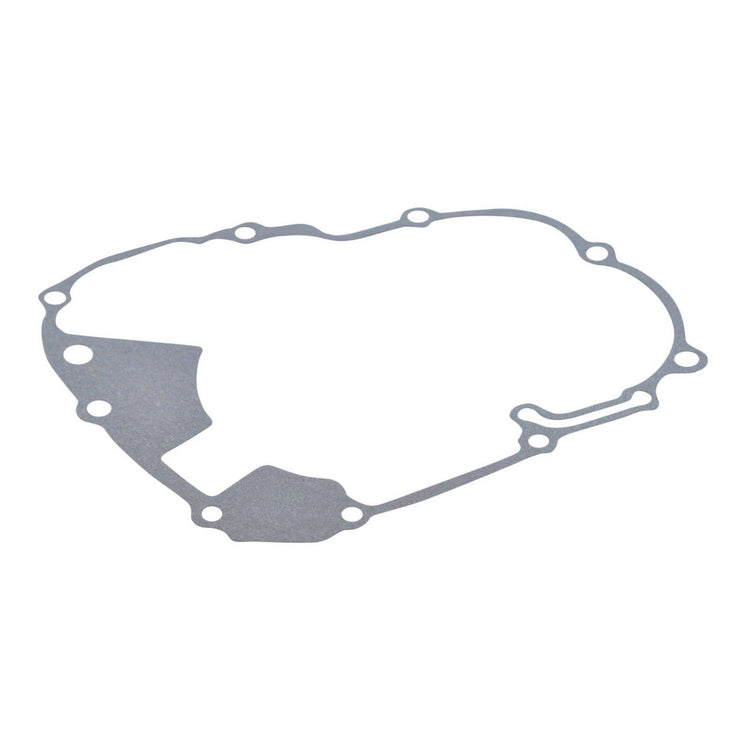

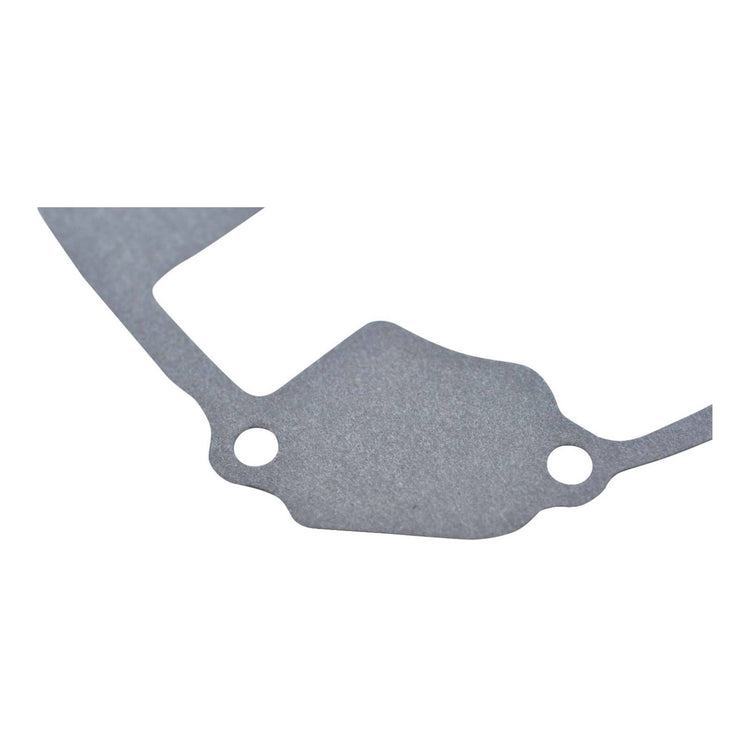

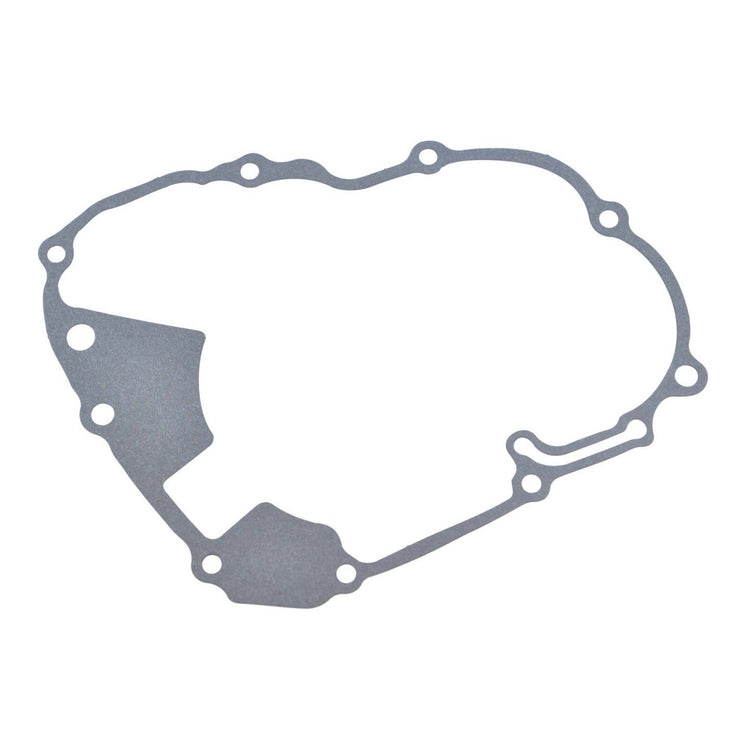

Brand new Stator Crankcase Cover Gasket

Specifications:

  • < strong>Dimensions Stator:
    • Interior diameter: 34 mm
    • Exterior diameter: 92 mm
    • Thickness: 15 mm
    • Length of wires stator to grommet: 75 mm
    • Length of wires grommet to plug: 900 mm
    • Length of pickup coil's wire to grommet: 80 mm
  • Other specifications:
    • Number of wires: 8
    • Number of plugs: 3
    • Number of pins: 8
    • Number of poles: 17
  • Wire-to-wire resistance:
    • Alternator 3p : Between each Yellow = 0.4 ohms +-20%
    • Alternator 1p: Yellow to ground = O.L
    • Pickup : Green to Blue = 250 ohms +-20%
    • Source #1: Black/Red to Blue = 36 ohms +-20%
    • Source #2: Blue to White = 7 ohms +-20%

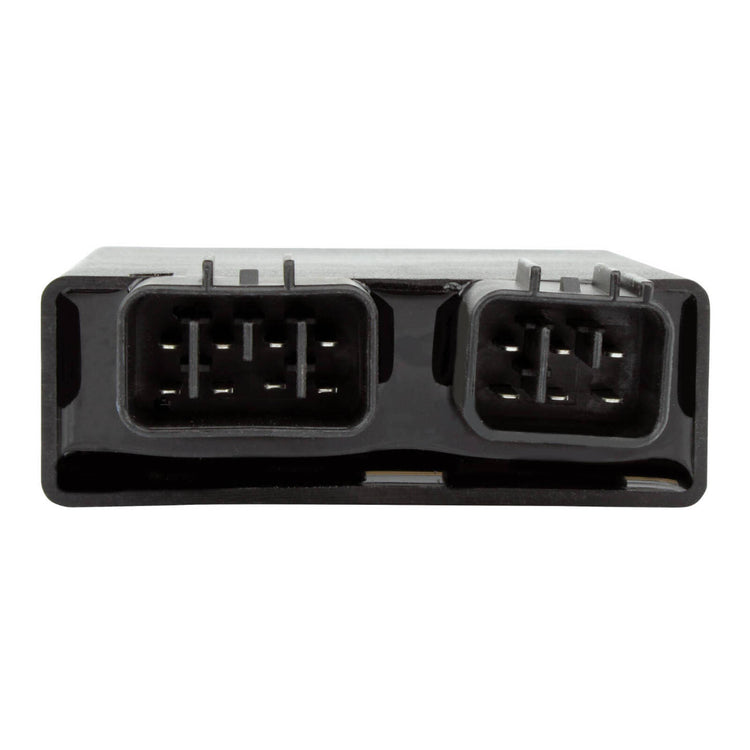

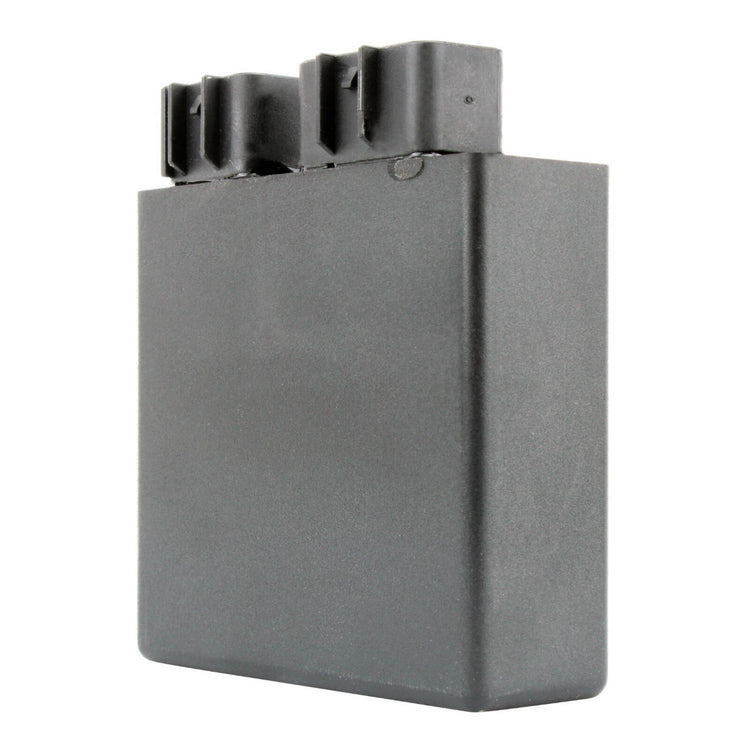

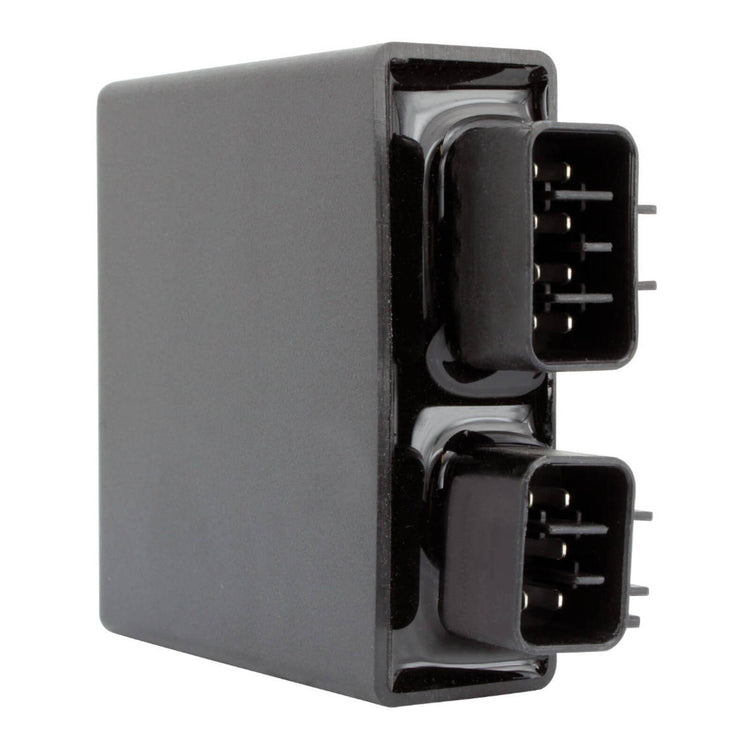

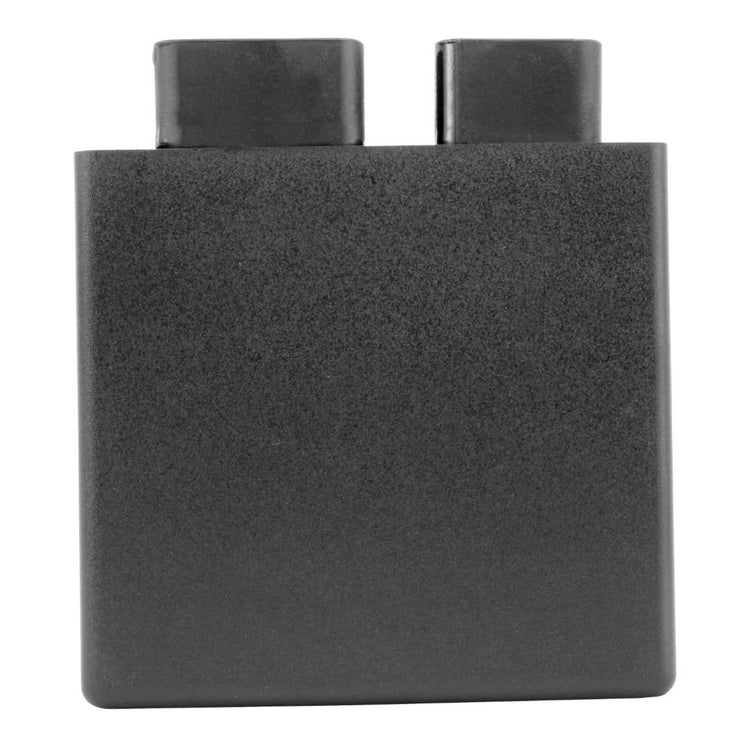

  • CDI BOX Dimensions:
    • Width: 70 mm
    • Length: 75 mm
    • Height: 26 mm
  • Other specifications:
    • Number of plugs: 2
    • Number of pins: 14

Notes:

  • Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
  • The only real way to test your CDI box is to swap it out with another known good unit from the same year / make / model. Because of this, we recommend that you rule everything else out before replacing the CDI box.
